OpenCRAVAT: a platform for the annotation of human genetic variation

Quick Links

OpenCRAVAT is a new open source, scalable decision support system for variant and gene prioritization. It includses a modular resource catalog to maximize community and developer involvement, and as a result the catalog is being actively developed and growing every month. Resources made available via the store are well-suited for analysis of cancer, as well as Mendelian and complex diseases.

References:

Kymberleigh A. Pagel, Rick Kim, Kyle Moad, Ben Busby, Lily Zheng, Collin Tokheim, Michael Ryan, and Rachel Karchin
Integrated Informatics Analysis of Cancer-Related Variants JCO Clinical Cancer Informatics , 2020, v.4, p.310-317.

Documentation

Important Notes

Module Name: OpenCRAVAT (see the modules page for more information)
Unusual environment variables set
- OC_HOME OpenCRAVAT installation directory
- OC_BIN OpenCRAVAT executable directory
- OC_SRC OpenCRAVAT source code directory

Interactive job

Interactive jobs should be used for debugging, graphics, or applications that cannot be run as batch jobs.

Allocate an interactive session and run the program. Sample session:

[user@biowulf]$ sinteractive  --mem=16g  --gres=gpu:p100:1,lscratch:10 -c4 --tunnel
...
salloc: Granted job allocation 61014005
salloc: Waiting for resource configuration
salloc: Nodes cn0843 are ready for job

Created 1 generic SSH tunnel(s) from this compute node to
biowulf for your use at port numbers defined
in the $PORTn ($PORT1, ...) environment variables.

Please create a SSH tunnel from your workstation to these ports on biowulf.
On Linux/MacOS, open a terminal and run:

    ssh  -L 40837:localhost:40837 denisovga@biowulf.nih.gov

For Windows instructions, see https://hpc.nih.gov/docs/tunneling
[user@cn2389 ~]$

Store the PORT1 number and the node_id you've got, in this case
PORT1 = 40837, and
node_id = cn2389.

[user@cn2389 ~]$ module load OpenCRAVAT/2.12.0
[+] Loading annovar 2020-06-08 on cn2389
[+] Loading OpenCRAVAT 2.12.0  ...

In order to annotate and interpret variants, OpenCRAVAT (OC) makes use of a database comprising chanks of data called "modules" (not to be confused with the Biowulf modules). The currenly installed modules OC modules are available in the folder: $OC_MODULES.

To get started with OpenCRAVAT, create an example input file in your current working directory by using the commands:

[user@cn2389 ~]$ cd /data/$USER
[user@cn2389 ~]$ mkdir OpenCRAVAT && cd OpenCRAVAT
[user@cn2389 ~]$ ln -s /usr/local/apps/OpenCRAVAT/2.12.0/src/cravat/logs
[user@cn2389 ~]$ oc new example-input .
example_inputcat example_input | wc -l

The latter command will create a file "example_input" in your current directory:

[user@cn2389 ~]$ cat example_input | wc -l
48head -n 20 example_input
[user@cn2389 ~]$  head -n 20 example_input
chr11   108244076       +       C       G       s0
chr17   31350290        +       C       T       s0
chr7    55174772        +       GGAATTAAGAGAAGC -       s0
chr7    140753336       +       AC      TT      s0
chr3    179234296       +       C       T       s0
chr4    54733174        +       T       A       s0
chr9    21970902        +       C       A       s0
chr3    10149836        +       G       C       s0
chr3    179199156       +       A       G       s0
chr17   7674953 +       T       A       s0
chr5    112839543       +       G       C       s0
chr7    55174015        +       G       C       s0
chr21   34880581        +       T       C       s1
chr17   7674241 +       G       A       s1
chr3    41224571        +       C       T       s1
chr3    10149886        +       T       A       s1
chr11   534286  +       C       A       s1
chr17   7674237 +       G       C       s1
chr3    41224610        +       C       A       s1
chr17   7675214 +       A       T       s1

Run OpenCRAVAT on the test input file:

[user@cn2389 ~]$ oc run ./example_input -l hg38 --mp 1
Input file(s): /vf/users/denisovga/OpenCRAVAT/example_input
Genome assembly: hg38
Running converter...
        Converter (converter)           finished in 1.231s
Running gene mapper...                  finished in 5.209s
Running annotators...
        annotator(s) finished in 1.027s
Running aggregator...
        Variants                        finished in 0.147s
        Genes                           finished in 0.115s
        Samples                         finished in 0.145s
        Tags                            finished in 0.253s
Indexing
        variant base__coding    finished in 0.015s
        variant base__so        finished in 0.014s
        variant base__chrom     finished in 0.009s
Running postaggregators...
        Tag Sampler (tagsampler)        finished in 0.076s
Finished normally. Runtime: 8.359s

Once the job is finished, the following files wil be created:

example_input.log

example_input.sqlite

example_input.err

In particular, file example_input.sqlite is the sqlite database with the results.

Alternatively, the sqlite database can be produced and accessesd through the OpenCRAVAT gui.

[user@cn2389 ~]$ oc gui --port $PORT1 example_input.sqlite

   ____                   __________  ___ _    _____  ______
  / __ \____  ___  ____  / ____/ __ \/   | |  / /   |/_  __/
 / / / / __ \/ _ \/ __ \/ /   / /_/ / /| | | / / /| | / /
/ /_/ / /_/ /  __/ / / / /___/ _, _/ ___ | |/ / ___ |/ /
\____/ .___/\___/_/ /_/\____/_/ |_/_/  |_|___/_/  |_/_/
    /_/

...

where $PORT1 is the tunneling port number you've got after allocating the interactive session. Store this port number and an id of the compute node you have been using, in this example node_id=cn2389

On your local system, open a new terminal window and type:

ssh -t -L $PORT1:localhost:$PORT1 biowulf.nih.gov "ssh -L $PORT1:localhost:$PORT1 $node_id"

where $PORT1 and $node_id should be replaced by the actual values you stored.

On your local system, navigate a browser to the URL: localhost:$PORT1.

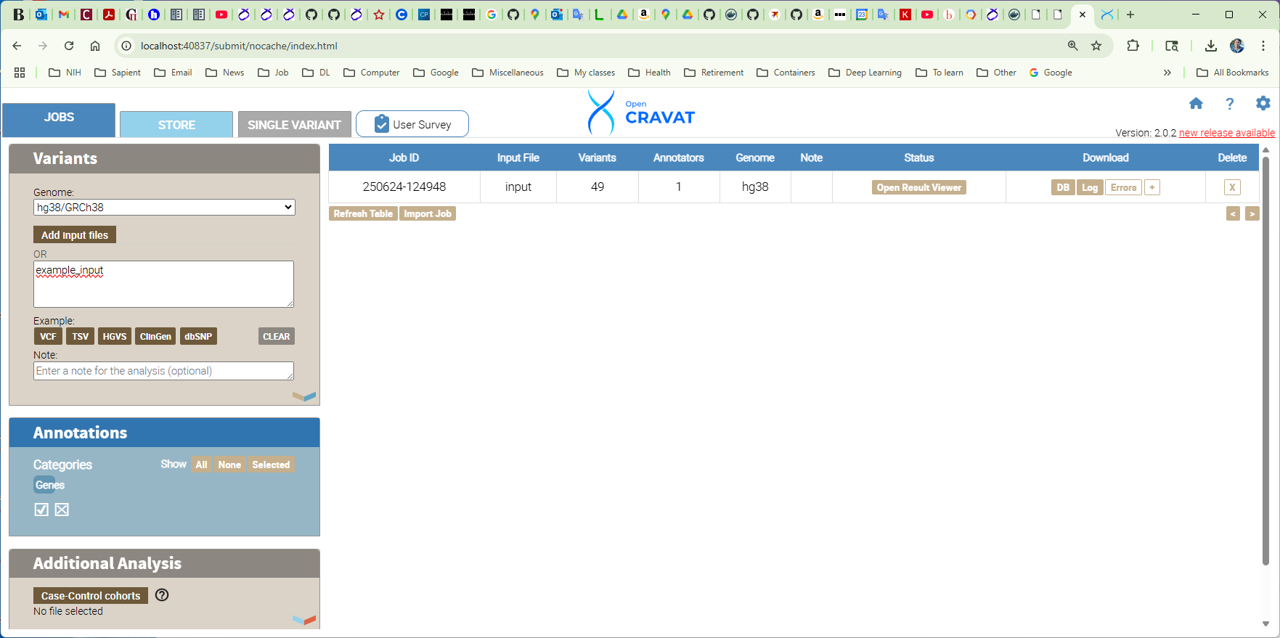

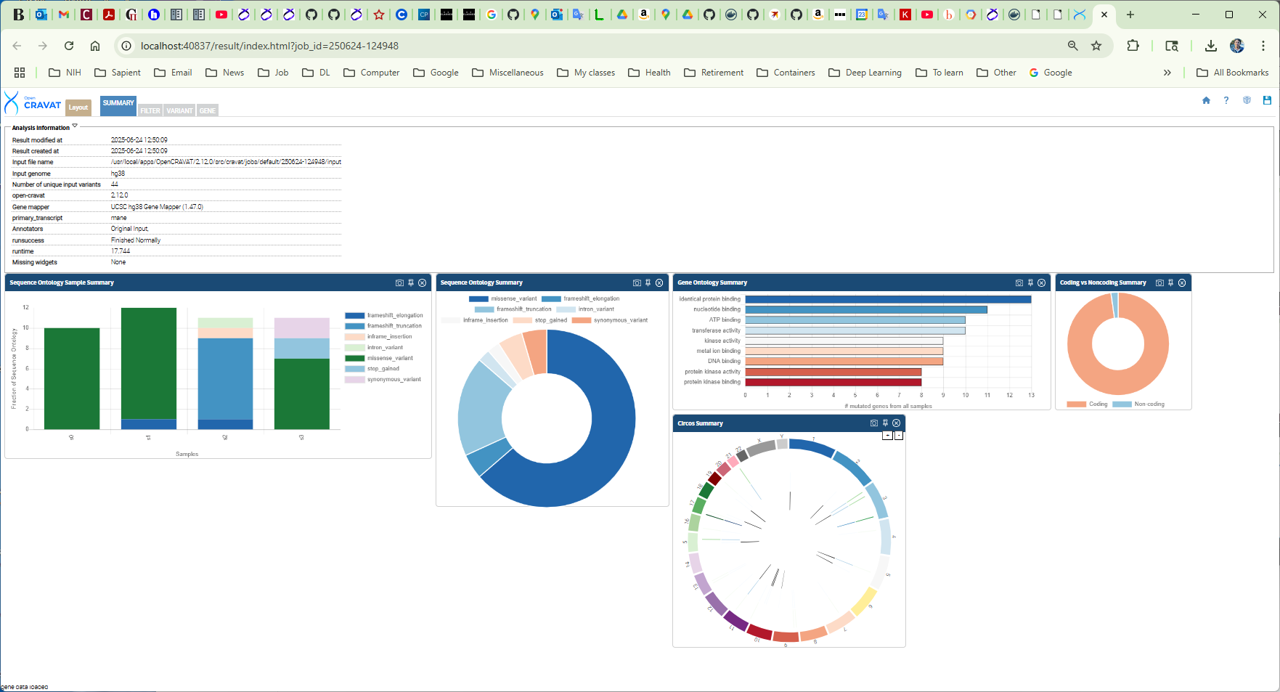

In the GUI, choose Genome = hg38/GRCh38, input files = example_input, then click on the "Open Result Viewer" button:

etc.

Exit an interactive session:

[user@cn2389 ~]$ exit
salloc.exe: Relinquishing job allocation 46116226
[user@biowulf ~]$
