DeepLabCut: Markerless pose estimation of user-defined features with deep learning for all animals, including humans

Quick Links

Interactive job

Batch job

Swarm of jobs

DeepLabCut is an open source toolbox that builds on a state-of-the-art animal pose estimation algorithm. It allows training of a deep neural network by using limited training data to precisely track user-defined features, so that the human labeling accuracy will be matched.

References:

Alexander Mathis, Pranav Mamidanna, Kevin M. Cury, Taiga Abe, Venkatesh N. Murthy, Mackenzie Weygandt Mathis and Matthias Bethge,
DeepLabCut: markerless pose estimation of user-defined body parts with deep learning.
Nature Neuroscience v.21, p.1281–1289 (2018)
T.Nath, A.Mathis, A.C.Chen, A.Patel, M.Bethge, and M.W.Mathis,
Using DeepLabCut for 3D markerless pose estimation across species and behaviors.
bioRxiv Nov. 24, 2018; doi: http://dx.doi.org/10.1101/476531
Alexander Mathis, Mert Yüksekgönül, Byron Rogers, Matthias Bethge, Mackenzie W. Mathis,
Using DeepLabCut for 3D markerless pose estimation across species and behaviors.
arXiv:1909.11229

Documentation

Important Notes

Module Name: DeepLabCut (see the modules page for more information)
Unusual environment variables set
- DLC_MODEL include pretrained model, has to be copied to /data/$USER

Interactive job

Interactive jobs should be used for debugging, graphics, or applications that cannot be run as batch jobs.

The DeepLabCut application installed on Biowulf is supposed to be run using GPU. As the first step, please allocate an interactive session:

Interactive use of DeepLabCut via the GUI requires a graphical X11 connection.
Both NX and MobaXterm work well for Windows users,
while XQuartz works well for Mac users.

[user@biowulf]$ sinteractive --gres=gpu:p100:1,lscratch:10 --mem=20g -c14
[user@cn4469 ~]$ module load DeepLabCut/2.2.2
[+] Loading singularity  3.10.0  on cn3063
[+] Loading CUDA Toolkit  11.2.2  ...
[+] Loading cuDNN/8.1.0.77/CUDA-11.2.2 libraries...
[+] Loading DeepLabCut  2.2.2

Clone the DeepLabCut GitHub repository, which contains some examples:

[user@cn4469 user]$ mkdir -p /data/$USER/DLC && cd /data/$USER/DLC
[user@cn4469 user]$ cp -r $DLC_MODEL/pretrained .
[user@cn4469 user]$ git clone https://github.com/AlexEMG/DeepLabCut
[user@cn4469 user]$ cd DeepLabCut

Checkout the version with specific tag corresponding to the version of the module you loaded:

[user@cn4469 user]$ git checkout tags/v2.2.2
...
HEAD is now at 2f5d328... DLC 2.2.2

The repository contains several videos:

[user@cn4469 ~]$ ls examples/*/videos/*
examples/openfield-Pranav-2018-10-30/videos/m3v1mp4.mp4
examples/Reaching-Mackenzie-2018-08-30/videos/MovieS2_Perturbation_noLaser_compressed.avi
examples/Reaching-Mackenzie-2018-08-30/videos/reachingvideo1.avi

Use these data in an interactive python session:

[user@cn4469 ~]$ ipython
Python 3.8.10 (default, Jun 22 2022, 20:18:18)
Type 'copyright', 'credits' or 'license' for more information
IPython 8.4.0 -- An enhanced Interactive Python. Type '?' for help.

In [1]: import deeplabcut

In [2]: config_path = deeplabcut.create_new_project("MyFirstProject", "Me", ["examples/Reaching-Mackenzie-2018-08-30/videos/MovieS2_Perturbation_noLaser_compressed.avi", "examples/Reaching-Mackenzie-2018-08-30/videos/reachingvideo1.avi"], '.', copy_videos=True)
Created "/gpfs/gsfs7/users/user/DeepLabCut/test_dir/DeepLabCut/MyFirstProject-Me-2022-08-31/videos"
Created "/gpfs/gsfs7/users/user/DeepLabCut/test_dir/DeepLabCut/MyFirstProject-Me-2022-08-31/labeled-data"
Created "/gpfs/gsfs7/users/user/DeepLabCut/test_dir/DeepLabCut/MyFirstProject-Me-2022-08-31/training-datasets"
Created "/gpfs/gsfs7/users/user/DeepLabCut/test_dir/DeepLabCut/MyFirstProject-Me-2022-08-31/dlc-models"
Copying the videos
...
A new project with name MyFirstProject-Me-2022-08-31 is created at /gpfs/gsfs7/users/user/DeepLabCut/test_dir/DeepLabCut and a configurable file (config.yaml) is stored there. Change the parameters in this file to adapt to your project's needs.
 Once you have changed the configuration file, use the function 'extract_frames' to select frames for labeling.
. [OPTIONAL] Use the function 'add_new_videos' to add new videos to your project (at any stage).
In [3]: deeplabcut.extract_frames(config_path,"automatic","uniform")
...
Config file read successfully.
...
Extracting frames based on uniform ...
Uniformly extracting of frames from 0.0  seconds to 8.53  seconds.

Frames were selected.
You can now label the frames using the function 'label_frames' (if you extracted enough frames for all videos).

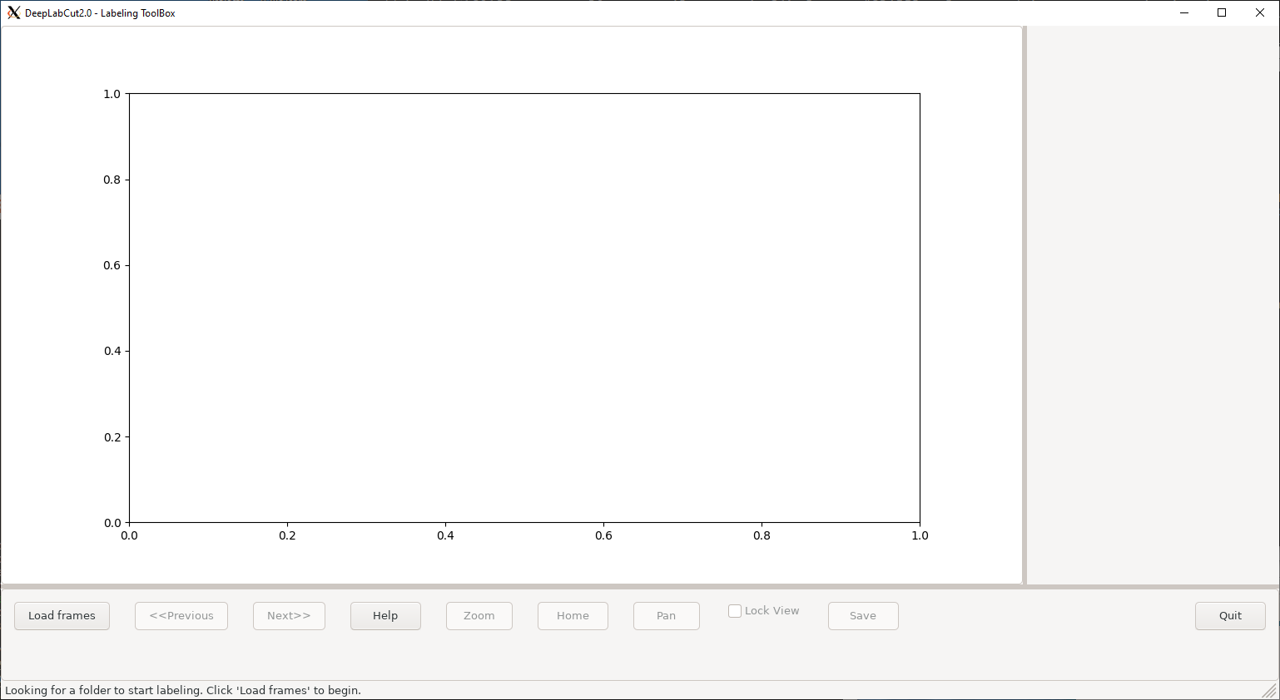

In [4]: deeplabcut.label_frames(config_path)

...

In [5]: quit()

[user@cn4469 ~]$ exit
salloc.exe: Relinquishing job allocation 46116226
